Durable protection against abrasion, impact and demanding operating conditions.

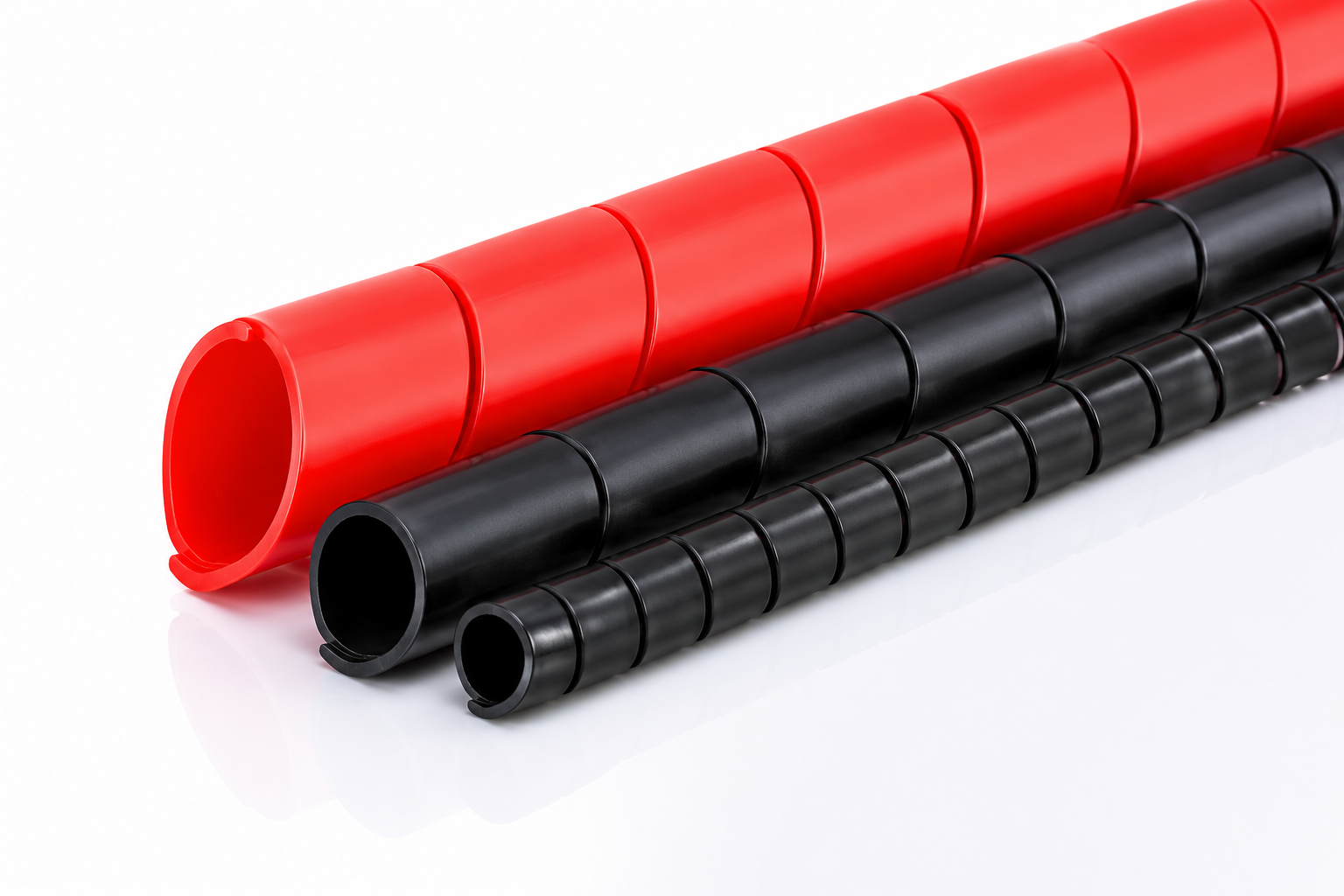

SPIRAL GUARD (SAI-PSG):-
SAI-PSG is widely used in the protection of hydraulic hoses, pressure pipe and cable products. By installing spiral guard on the product, it comprehensively improves the performance of wear-resistance, insulation, oil resistant and flame retardant, resistance to ultraviolet radiation, thus increases the service life of the product. SAI-PSG is very easy to wrap & it facilitates easy fitment of sleeve even after complete assembly of Hose.
| Product Range | ||
|---|---|---|
| ID (in mm) | OD (in mm) | Length (in metres) |
| 5 - 44 | 7.5 - 50 | 25/50 |
| Features |
|---|
| Easy Installation |
| Fire Retardant (Optional) |
| Resistant to UV radiation |
| Application |
|---|
| AC Hoses |
| Electric Panels |
| Computer Cables |
| Hydraulic Hoses |
| MATERIAL SPECIFICATIONS | |||
|---|---|---|---|
| Material | Operating Temp | Standard Color | Other Features |
| Nylon 6, Nylon 12 | -40°C ~ 110°C | Black, White (Customisable) | Oil resistant, Abrasion resistant |
| HDPE/PP/PE | -40°C ~ 80°C | Black, White (Customisable) | Abrasion resistant |
